    HYDRAULIK-ÖLMOTOR MS 400 ECO (ALSG3-400)
    Artikel Nummer
    14529
    Preis inklusive Mehrwertsteuer:
    180,00 EUR
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)
    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)

    HYDRAULIK-ÖLMOTOR MR 315 ECO (ALSG2-L-315)

    Artikel Nummer
    14520
    OEM:
    9990000172627
    Steuersatz
    22 %
    Preis exklusive Mehrwertsteuer:
    81,97 EUR
    Preis inklusive Mehrwertsteuer:
    100,00 EUR
    Ref:
    5
    ZUM EINKAUFSWAGEN HINZUFÜGEN
    Technical data
    Supplier: China
    Return or exchange: 14 days
    Warranty: 6 months
    Shaft diameter: 25 mm
    Oil flow:

    constant flow 60 L/min, intermittent 75 L/min

    Connection thread: 1/2"
    Temperature range: from -40°C to 140 °C
    Torque:

    constant torque 51,1 daNm, intermittent 58,2 daNm

    Revolutions:

    constant revolutions 152 rpm, intermittent 171 rpm

    Pressure drop:

    constant pressure 160 bar, intermittent 175 bar

    Power:

    constant power 9 kW, intermittent 10 kW

    cm³/revolution: 317,5
    Weight: 9 kg



    DESCRIPTION – HYDRAULIC MOTORS MR ECO



    MR type hydraulic motors are compact, robust, and reliable with an orbital design. Due to their simple construction and high efficiency, they are suitable for a wide range of applications.



    The ECO version maintains the standard quality and reliability while being more affordable, as trusted producers manufacture it without the added brand premium.



    They are characterized by:



    • high displacement at low speeds,
    • smooth and quiet operation,
    • long service life thanks to high-quality materials and seals,
    • possibility of operation in both directions of rotation,
    • low oil consumption relative to output power,
    • ECO version: same quality and performance at a lower price.



    MR hydraulic motors are mainly used in agricultural, forestry, and construction machinery, as well as in industry, where reliable and efficient conversion of hydraulic energy into mechanical motion is required, with an even greater emphasis on sustainable energy use now.

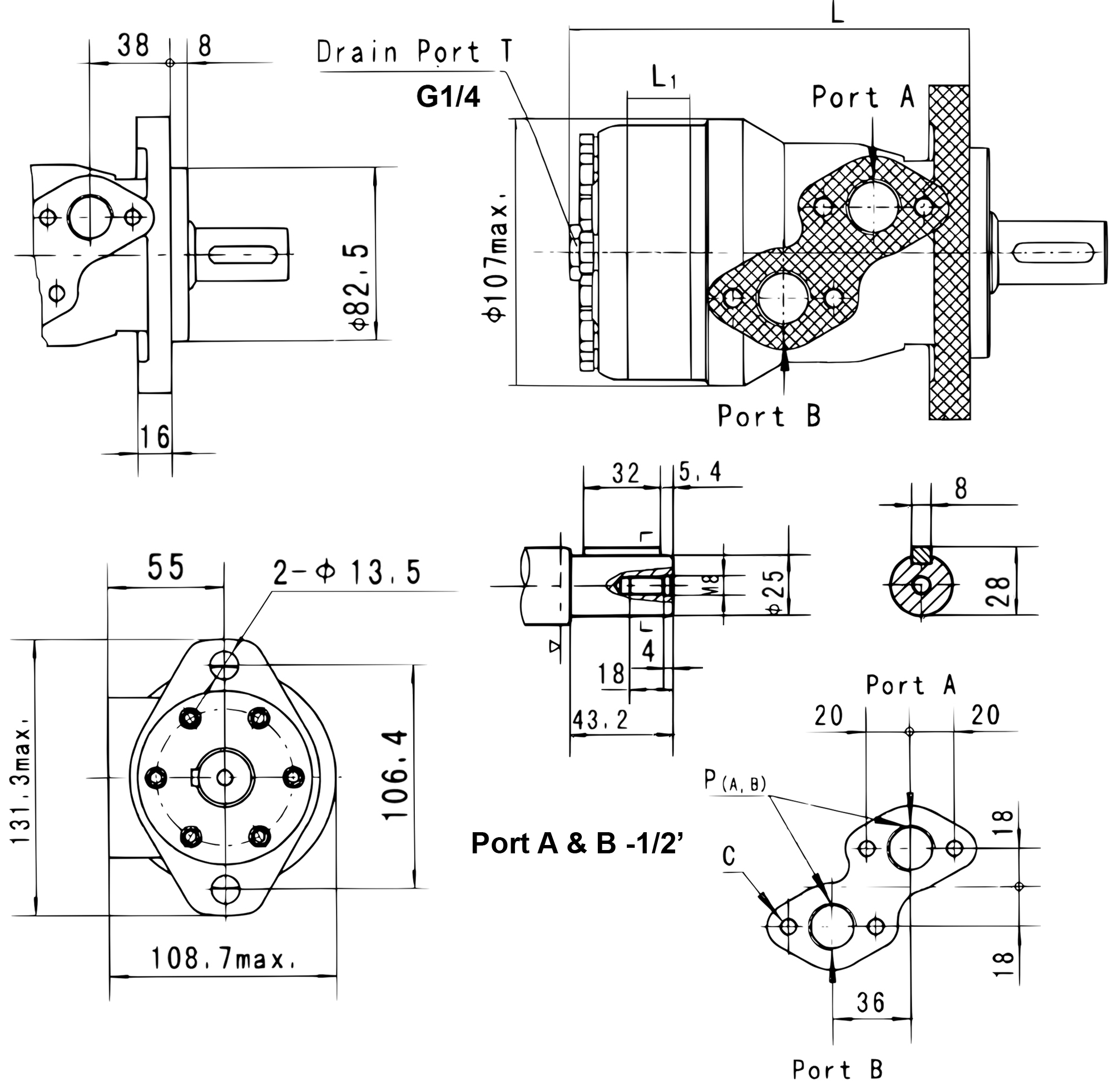

    L

    L1



    (mm)

    (mm)

    MR 50 ECO

    140

    10

    MR 80 ECO

    146

    16

    MR 100 ECO

    150

    20

    MR 125 ECO

    155

    25

    MR 160 ECO

    161,5

    30,5

    MR 200 ECO

    170

    38,1

    MR 250 ECO

    180

    50

    MR 315 ECO

    192

    62

    MR 400 ECO

    204

    74
